直读光谱仪

进口直读光谱仪_GNR火花直读光谱仪_MINI型全谱直读光谱仪

意大利GNR分析仪器公司(Italy GNR Analytical Instruments)于1984年成立于意大利米兰,是一家专业的光谱仪制造商,现已成为科学仪器跨国集团公司,拥有分布于意大利、瑞士、美国、德国、马来西亚、乌克兰等的十几个工厂以及遍及全球的分公司或办事处,其产品和服务已经延伸到了一百多个国家和地区。
其创始人Mr. Mario Gungui和Mr. Antonio Nigro,于同年接管了欧洲分析仪器领域非常著名的OPTICA公司。
OPTICA公司成立于20世纪四五十年代,是与瑞士ARL公司共同发展的光谱仪制造领域先驱。不管是后来成立的OBLF还是Spectro,这些大的光谱仪制造商都或多或少地承接了OPTICA公司的先进技术。
意大利GNR分析仪器公司(Italy GNR Analytical Instruments)自成立以来,不断加强研发力量,与很多知名大学建立了良好的合作关系,使GNR拥有一群高水平的专家和先进的技术,为其在国际市场的迅速发展奠定了良好的基础。在随后的二十几年里,意大利GNR分析仪器公司逐步成长和发展为全球主要的光谱仪制造商之一。
意大利GNR分析仪器公司(Italy GNR Analytical Instruments)现有OES直读光谱仪,X荧光(XRF)光谱仪,ROHS有害元素筛选仪,STRESS-X残余应力分析仪,GNR ROTROIL油料分析仪等
意大利GNR分析仪器公司(Italy GNR Analytical Instruments)现拥有众多型号系列的光谱仪,无论您是生产现场还是实验室应用,都可以找到合适您的仪器。我们的OES设备包括:光电倍增管Atlantis落地式(PMT)火花直读光谱仪;SOLARIS CCD PLUS、METAL LAB PLUS两款落地式(CCD)火花直读光谱仪;以及SOLARIS CCD NF、MINI-Lab、MINI-SCP三款台式(CCD)火花直读光谱仪;METAL TEST 和ESAPORT两款(CCD)移动式直读光谱仪。

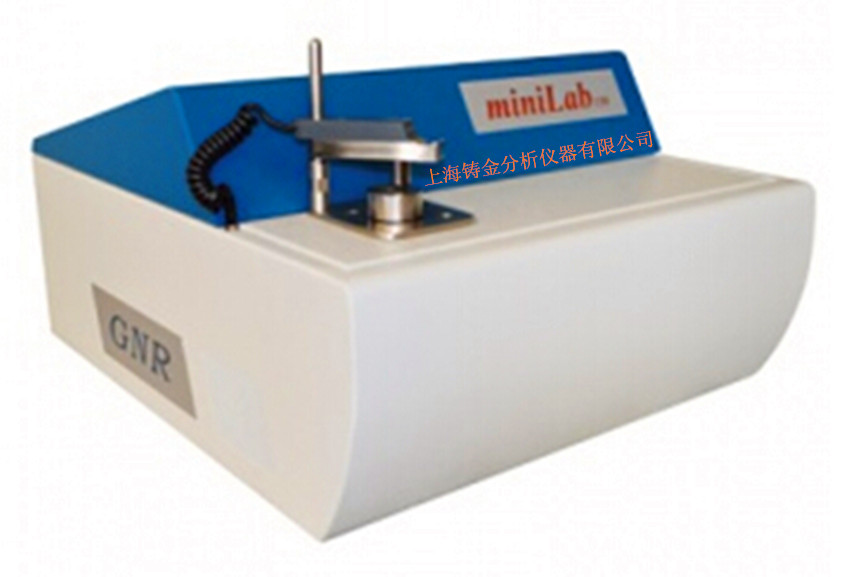

进口直读光谱仪_GNR火花直读光谱仪_MINI型全谱直读光谱仪是一台方便使用和高精度的意大利原装进口精密光电直读光谱仪。
GNR –Mini Lab spectrometer is the right instrument which combines ease of using, reliability and accuracy in results.

由于结构紧凑体积小巧、性能高GNR –Mini Lab可以安放在办公室、实验室、仓库、生产线等任何工作场所。GNR –Mini Lab可以有不同的配置,用于分析单个不同种类的黑色或有色金属及合金。
Thanks to its reduced dimensions and to the quality of components, GNR –Mini Lab represent the ideal solution to be used in any working place: Office, Laboratory, Stock, Production.
GNR –Mini Lab is available with different configurations, able to analyze any different kind of metal alloys, ferrous or non ferrous ones.

进口直读光谱仪_GNR火花直读光谱仪_MINI型全谱直读光谱仪技术参数

GNR –Mini Lab配备:
1. 光学系统 Optical system
2. 谱线 Optical lines
3. 控制、电子采集和数据读出系统 Control, Acquisition Electronics and read out system
4. 火花源 Spark Source
5. 火花台Spark Stand
6. 软件 Software
7. 控制中心:电脑 Control station : computer

组成部分的描述:
DESCRIPTION OF THE COMPONENTS:
1. 光学系统 OPTICAL SYSTEM
 多块高性能CCD检测器系统,
 Many High Resolution CCD Multi detectors
 每块CCD 3,648 像素
Each CCD has 3,648 active  elements (pixels equivalent)
 10,944像素的分辨率(4 x 3,648 像素)
Resolution of full range 14,592active elements (pixels) (4 x 3,648 pixels)
 高性能全息衍射光栅,光栅刻线3600 条/mm
High luminosity holographic grating with 3600 grooves per mm
 温度稳定系统
Stabilized against fluctuations in temperature
 采用特殊材料应对漂移
Special material for drift free
 焦距:150 mm
Focal length 150 mm for all optical systems
 谱线波长:170 - 450 nm由衍射光栅的选择决定。光栅的选择由制造商根据分析元素和分析程序来决定
Spectral optical wavelength170 – 450 nm depending on selected diffraction grating. Grating selection is made by manufacturer depending on analytical programs and elements
 全光学系统自动描迹
Automatic profiling full optical system
 密闭的氩气填充光学室可以避免灰尘、光线的干扰
Argon filled tight optical chamber sealed against light and dust

2. 谱线OPTICAL LINES
 Mini Lab几乎覆盖了全元素分析范围,可根据具体需要分析相应的元素
Mini Lab can be equipped with all the needed spectral lines basing on analytical programs requested
 光学系统包括固态检测器能够测量样品所发出的全谱
Optical system includes full range multi-chanel CCDs solid state detectors able to measure the whole optical spectra emitted by all elements in the samples
 并且为将来可能的升级,增加分析线(元素)方便
It’s always possible to integrate new spectral lines (elements) for future upgrade
 可现场增加分析程序
Possible on site addition of analytical programs

3. 控制、电子采集和数据读出系统CONTROL, ACQUISITION ELECTRONICS and READ OUT
 电子系统具有微处理器控制的多通道积分和数据系统采集功能
Electronic system with integrators multi-channels and Data System Acquisition PC controlled by microprocessor
 高速16位模数转换器
High speed 16 Bit ADC
 ISP混合信号Flash微控制器100MHz
Mixed Signal ISP Flash MCU 100 MHz
 多种连接源
Serial Source Interface
 高速读出及高速USB借口支持快速数据控制与处理系统
High speed readout with high speed interface USB for fast data processing and controlling the system
4. 火花源SPARK SOURCE
 全自动控制火花源
Full automatic controlled source
 半导体控制放电激发
Solid state spark source semiconductor controlled.
 1 到 100 A等离子体电流
Plasma current from 1 to 100 A
 放电参数由密码保护
The discharge parameters are protected by password
 特别的分析要求可有不同的激发参数
Variable discharge parameters for individual analytical tasks
 火花光源放电稳定,不受供电系统波动的影响
The spark source is stabilized against variations of the power supply
 激发参数由激发线和分析程序标定和控制
Excitation parameters configurated and controlled according to excitation lines and analytical programs
 火花源可有多种参数设置
Spark source with variable parameters
 火花频率: 100 到 to 1000 Hz (可控)
Spark Frequency: 100 up to 1000 Hz (controllable)
 火花持续时间 10-10000 us (可控)
Spark time 10-10000 us (controllable)

5. 火花台SPARK STAND
 开放式的火花台可以分析测试重达20Kg的各种形状的样品
The open universal spark stand allows to analyse samples up to 20 Kg and suitable for samples in different forms
 电极易于拆卸维护
The electrode is easily removable for maintenance
 氩气吹扫火花台,低氩气消耗
Argon flushed spark stand with minimum consumption of Argon
 使用便捷的样品夹支持快速样品更换
Quick change with simple designed sample clamp for fast sample throughput
 不同样品的适配器可满足各种样品的需求(可选)
Small adapters for different samples are also available for various kind of samples(options)

6. 软件 : 分析软件、校正软件、统计功能
SOFTWARES: ANALYTICAL SOFTWARE, CALIBRATION SOFTWARE AND STATISTIC FUNCTION
计算每种元素的校正曲线需考虑到各种基体(参考线)。
For calculation of calibration curves for each elements into consideration of various matrixes (references) available for the calculation of analytical results.
软件功能: Software allows for
分析校正软件:ANALYTICAL AND CALIBRATION SOFTWARE:
• 智能化 : 用一组标样即可完成标准化
SMARTCAL : standardisation using a single sample
• 便捷的用户图形界面Easy GUI ( Graphic Interface User) system
• 创建或修改分析程序Creation or modification analytical programs
• 常用的操作功能键Function keys for routine operations
• 可选择的输出方式 ( 强度,强度比,未校正的浓度,校正后的浓度等)
Output unit selectable (intensities, intensities ratios,  uncorrected concentrations, corrected concentrations etc)
• 可选择的浓度单位 ( ppm, % ) Selectable concentrations units ( ppm, % )
• 通用标准化Global recalibration
• 微型标准化Mini calibration  ( Type recalibration)
• 校正元素间的干扰Correction of inter elemental interferences
• 自动标准化Standard deviation and relative standard deviation functions
• 标准偏差和相对标准偏差功能Repeat or reject one or more discharges
• 合金类型鉴定(UNI, ISO, DIN, EN, ASTM, JIS, BS, 等.)
Determination type of alloy (quality name) according to  the requested norm  (UNI, ISO, DIN, EN, ASTM, JIS, BS, etc.)
• 标样库Standards library
• 国际标准物质库International norms library
• 牌号鉴定Quality identification
• 支持C当量或其他参数的计算
Calculation of Carbon equivalence or any other parameter consequent to the analysis
• 可标记超出工作曲线范围的元素分析结果Signalling of out prefixed range elements
• 具有根据分析时间或激发次数自动再校正功能
Possibility of automatic signal for recalibration depending on time or on spark number
统计功能软件:STATISTIC SOFTWARE functions:
• 统计计算Statistic calculation
• 可打印所有激发结果或是最多100次的激发平均结果,及其标准偏差和相对标准偏差
Printing of all discharges or only the average of  up more than 100 discharges, standard deviation and relative standard deviation
• 硬盘存储数据便于今后的研究分析
Filing on Hard Disk of all data with possibility of researching various keys
• 可连接外部计算机或中心系统Connection to external computers or central/server system

• 综合特性:General properties:
* 32位应用软件Software with 32bit application
* 字体、字体大小设定 Fonts, font-sized setup up to setting on screen
* 日期/时间格式基于Windows设置Date/time formats compatible with Windows setup
* 多种输出功能或对话操作的快捷图标
Various icons for quick access to output functions or dialogues
* 下拉式菜单操作文档、筛选、观察Drop lists for File, Filter, View
* 元素数量不受限unlimited number of elements
* 样品识别域数量不受限unlimited number of sample id fields
* 帮助文件Help task
* 手动转换 MS-Word 文件 or PDF文件 (Acrobat Reader)
Manual as MS-Word file or PDF (Acrobat Reader)
* 全自动控制,自动诊断功能Fully automatic control and automatic diagnostic function
• 数据库:Database:
* 输入、输出 Import, Export
* 仪器与通信间的接口Communication & Instrument interfacing
* 文件的共享、传输File for sharing, transfering
* 输出文件、统计程序Export to files, statistic programs
• 文档:Documentation:
* 标准输出、页面设置logo或信头功能
Standard print, page set-up with logo or letter head functions
* 打印设置、打印预览Printer set-up, Print Preview
* 数据打印、工作曲线打印Data printing, curves printing
• 分析管理:Analyses management:
* 数据库管理和控制Database management and controller
* 多窗口支持多任务工作Multiwindows for multi tasks working
* 不限制察看分析结果列表的数目Unlimited number of views for analyses table
* 所有数据库域的查询功能Search function for all data fields in view
* 分析的编辑功能Edit function for analyses
* 分选结果时发出“滴滴”声Click’n’mark analyses selection
* 元素、大小、小数点的显示格式Display formats with elements, forms, dimensions, decimals
* 分析结果复制功能Copy function
* 结果的单位和小数点选择(不限数目)Units & dimensions (unlimited number)
* 手动分析结果输入和样品鉴别Manual analysis input and sample identification
* 可选的样品码输入使用条形码阅读器Optional sample code imput using bar code reader
* 所有样品识别和元素域的操作一目了然Transparent access thru all sample-ids & element fields
* 适用于所有分析结果的查询和输出Applicable for all analyses views and outputs
* 牌号数据库Quality database
* 牌号控制功能Quality control function
* 牌号识别功能Quality identification
* 分析结果列表中牌号控制的显示Display of quality control in the analyses table
* 收到的已存在牌号的自动检测Automatically check of received qualities for existence
* 展公式编辑功能Formula editor with extended possibilities
* 自定义公式编辑Formula calculation
* 数字统计功能(序号, 加合, 平均, 绝对/相对 标准偏差, 最大, 最小, 范围)
Numeric statistics (no., sum, average, abs./rel std dev., min, max, range)
* 步宏编辑Macro programs, with asynchronous execution
* 异步宏排序Macro sequences, with asynchronous execution
* 自动项目或预定宏执行的任务服务器
Job server for automatic event, or scheduled macro execution

7. 控制站:电脑CONTROL STATION : PERSONAL COMPUTER
用户自备,或由经销商在国内采购(价格另计)。建议配置:
电脑 :笔记本或台式机(可选)需安装并且确认软件的兼容性。
CPU奔腾酷睿2、 内存 2GB
硬盘 >320 GB  7.200转 、 DVD—CD-DVDRW-CDRW
显示器LCD 17” 或 19” TFT
Windows XP操作系统
网络、 显卡, USB接口…
键盘、鼠标
打印机 :  彩色惠普 Deskjet 打印机,或同等产品

8. 尺寸 : DIMENSIONS
尺寸(Dimension):  L590x W500 x H130 mm
重量(Weight)   :   35 Kg

9. 电源 : POWER SUPPLY :
110/220V +/- 10%、  单相(single phase)、  50/60 Hz
16 A、 < 1.0 KVA

10. 其他 : OTHER CONDITIONS :
工作温度范围(Working temperature range): +10°C - +40°C
湿度范围(Working humidity): 15 – 85%
氩气溯流压力(Argon upstream pressure) : ~200 bar
氩气输入压力(Argon inlet pressure) : ~3.5 bar
氩气质量(Argon quality) (min.) : 5.0 (99.999% 氩)
氩气流量(Argon flow rates)
* 待机(Stand-by) : 0.001l/小时
* 常流量(Constant flow) : 0.5 l/小时
* 分析流量(Analytical flow) :  180l/小时 (3lt/分析)

进口直读光谱仪_GNR火花直读光谱仪_MINI型全谱直读光谱仪保修期及售后服务
Guarantee & Service

1、安装 Installation
由卖方受过专业培训的工程师进行免费安装调试、交付使用以及人员培训(为期2-3个工作日)。
The Seller’s professional technicians will install the instruments and training the users within 2 to 3 workdays for free.
交付使用前需要进行验收测试,表明部件和分析系统运转良好。在满足本技术协议规定GNR光谱仪的所有技术指标后,由双方签署验收报告。
Commissioning will be taken before acceptance. Both parties should sign the acceptance report after the instrument reaches all the technical data prescribed in this agreement.

2、验收 Acceptance
买方按合同规定的供货范围进行清点验收。在仪器至少稳定24小时的情况下,用具有良好均匀性的国家或国际一级标准光谱样品测试,结果符合仪器的指标要求。
The Buyer should acknowledge receipt of goods after checking them against the list shown in the agreement. After the instrument runs steadily at least 24 hours, the testing results should be reached the technical data by using the homogeneous national or international first grade CRM.

3、培训 Training
安装调试时,在买方现场进行免费培训。培训内容包括分析仪安装、分析仪试车运行、分析测试样品、分析用户样品、培训实验室操作人员(设备原理、日常操作,软件应用、日常维护及维修),使用户能独立操作仪器。
Training will be made at the Buyer’s site for free during the installation. The training includes instrument installation, commissioning, testing samples, testing user’s samples, training lab operators about equipment theory, daily operation, software application, daily maintenance and repair, to make sure that users can operate the instrument properly.

4、保修期 Guarantee Period
1) 卖方负责仪器的保修及售后技术支持,整机系统保修1年(从安装调试完成,验收合格之日算起,但不超过仪器发货运单标明的出货日期后十八个月)。
The Seller will offer the technical support, after-sales service and maintenance. The whole system has one year guarantee since installation and acceptance, but not over 18 months since the shipping date shown in Airway Bill.
2) 保修范围不包括自然损耗和不正当操作所造成的损坏,保修范围内不收取维修及更换配件的费用。在保修期内,任何由于仪器质量产生的问题,卖方将负责免费服务和部件更换。但由于用户现场条件、人为操作不当、人力不可抗拒等外部原因,以及合同规定以外的任何额外服务,将按规定收费。
Guarantee should be covered the maintenance and accessories’ replacement for free, but not included natural depletion and extra-damage caused by improper operation. The Seller should be responsible for offering free service and accessories’ replacement during the guarantee period if any problems caused by the instrument’s quality. But if the problems are caused by the conditions at the user’s site, man-made improper operations, force majeure etc, or the Buyer asks for the extra-service beyond the contract or the agreement signed, the Seller could charge it according to the Seller’s service rules.
3)  保修期内,接到故障通知后2小时内做出响应,1个工作日内派工程师到达用户现场,免收维修费。对于非人为损坏的零备件予以免费更换,消耗品除外。如使用不当造成的损坏,卖方负责维修,用户需承担必要的零部件费用。如有异意,双方协商处理。
During guarantee period, the Seller should respond within 2 hours when received the service call, and send the technicians to be at the user’s site within 1 workday for free. The Seller should replace all the damaged spare parts for free except consumables. In case of the damage caused by improper operation, the Seller will be responsible for the repair work, but the Buyer should pay for the necessary spare parts. If any objection, both parties should negotiate it.
4) 卖方负责终身维修。保修期外,卖方应继续向用户提供优质服务。在接到故障通知后2小内做出响应,1个工作日内派工程师到达用户现场,并以优惠价格提供所需备件和易耗品,买方需支付相关维修费和必要的备件和易耗品费用。
The Seller should provide long-term maintenance and quality service even over the guarantee period. The Seller should respond within 2 hours when received the service call, send the technicians to be at the user’s site within 1 workdays, and offer the spare parts and consumables at the best price to the Buyer. The Buyer should pay for service and necessary spare parts and consumables.
